SPECIFICATION / FEATURE:

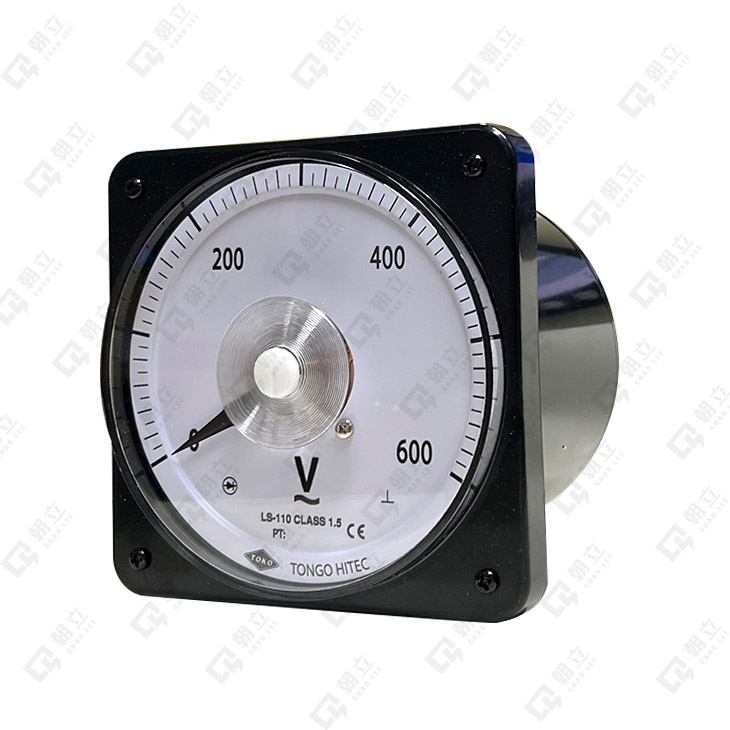

統固廣角形電表
LS-110 A / V: class 1.5
LS-110 KW: class 1.5
LS-110 PF: 4 degrees in phase angle.
LS-110 Hz: class 1.0
LS-110 A / V: class 1.5
LS-110 KW: class 1.5
LS-110 PF: 4 degrees in phase angle.
LS-110 Hz: class 1.0
1. Accuracy:
2. Full Scale Deflection: 250 degrees
3. Full Scale Length: 183mm (7 1/4inches)

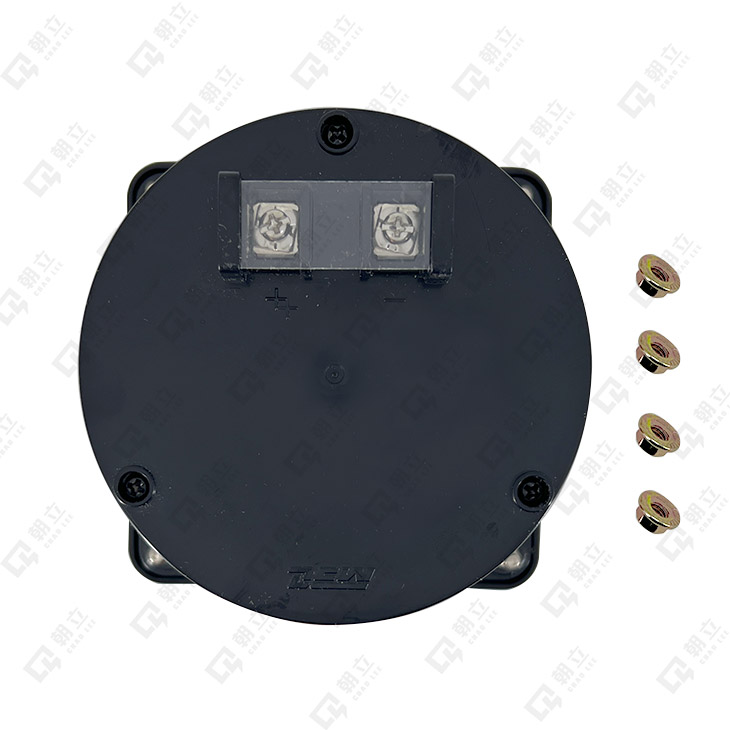

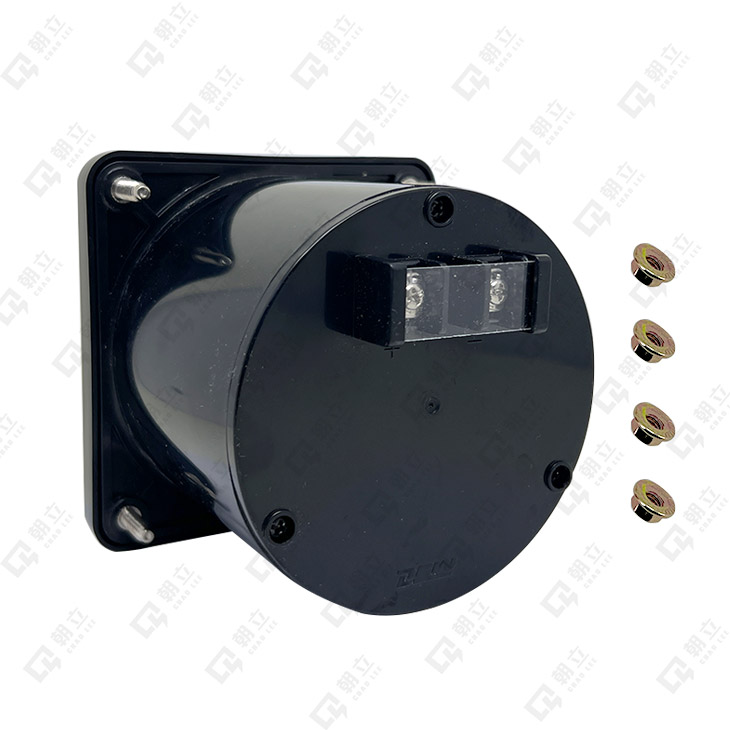

4. Case and Compositon: acrylic resin cover, plastic meter body, bakelite terminal
plate. Four stud mounting.
5. Color: white scale plate, black terminal plate, gray meter body.
6. Pointer: sword type in black color
GENERAL INFORMATION:

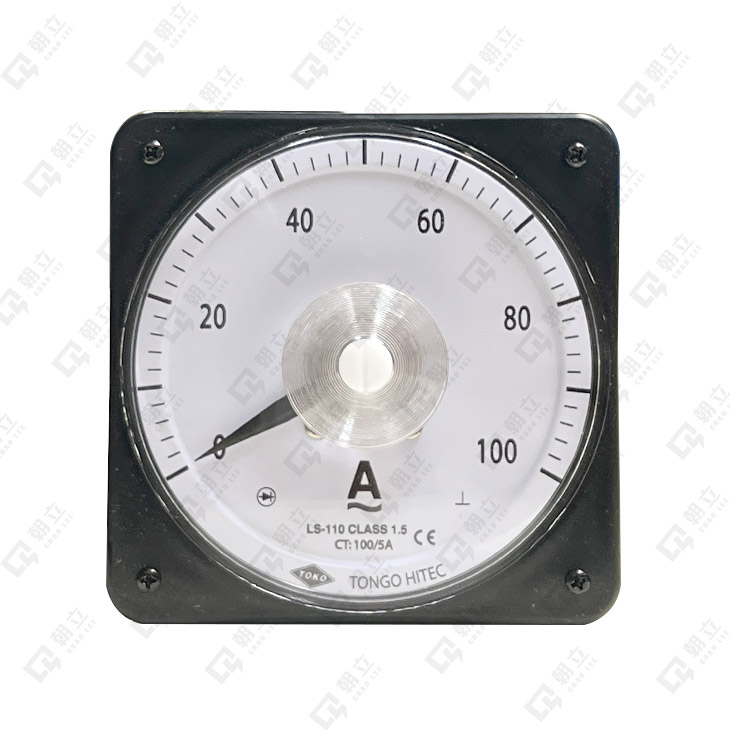

LS-110A / V :
Measuring Ranges:
Moving Coil Type: 500 A - 30A DC
30V - 300V DC
Rectifier Type: 150V - 600V AC
5A AC
- For ranges higher than 30A DC, use external shunt with a 50 mV or 60 mV DC Ammeter.
- For ranges higher than 300V DC, use external Multiplier with a 1 mA Voltmeter.
- For ranges higher than 5A AC, use external Current Transformer with a 5A AC Ammeter.
- For ranges higher than 600V AC, use external Potential Transformer with a 150V AC Voltmeter.
LS-110 kW : 110V, 220V, 380V, 500V, 5A
For any rating other than listed above, use external
Current Tranformer and/or external Potential Transformer with a 110V / 5A instrument.
LS-110 COS : 110V, 220V, 380V, 500V, 5A
For any rating other than listed above, use external
Potential Transformer with a 110V / 5A instrument.
LS-110 Hz : 110V, 220V, 380V, 500V
For a voltage rating higher than above, use an external
Potential Transformer with a 110V instrument.
For any rating other than listed above, use external
Current Tranformer and/or external Potential Transformer with a 110V / 5A instrument.
LS-110 COS : 110V, 220V, 380V, 500V, 5A
For any rating other than listed above, use external
Potential Transformer with a 110V / 5A instrument.
LS-110 Hz : 110V, 220V, 380V, 500V
For a voltage rating higher than above, use an external
Potential Transformer with a 110V instrument.

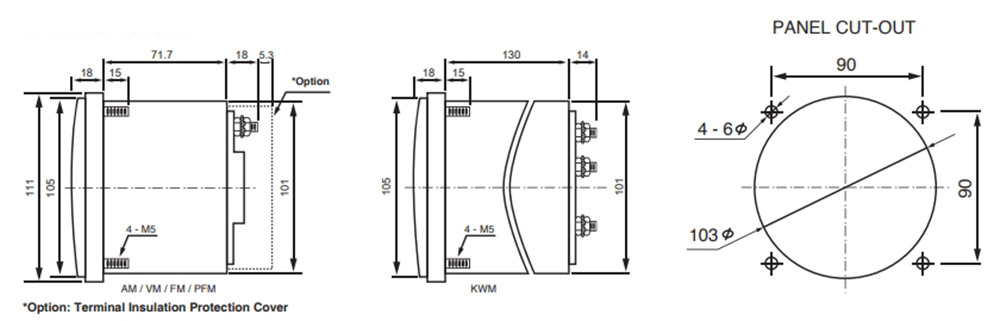

DIMENSION :
 |
