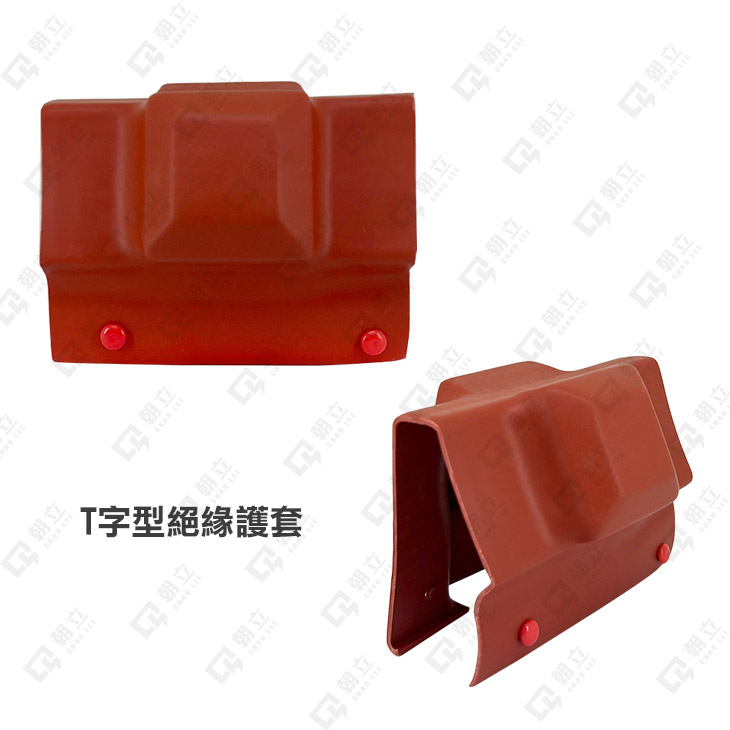

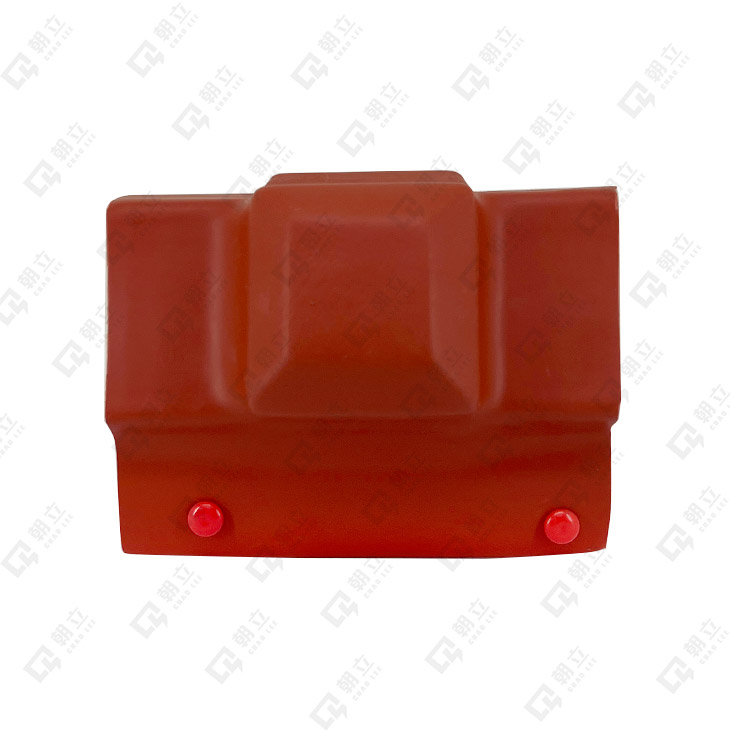

規格表
| 件號 | A + B + C + D | (A)主銅板規格 | (C)分路銅板規格 | |||
|---|---|---|---|---|---|---|
| T01 | 45 | 15 | 45 | 15 | 10TX40-1/Ø | 10TX40-1/Ø |
| T02 | 55 | 15 | 55 | 15 | 10TX50-1/Ø | 10TX50-1/Ø |
| T03 | 65 | 15 | 65 | 15 | 10TX60-1/Ø | 10TX60-1/Ø |
| T04 | 105 | 15 | 45 | 15 | 10TX100-1/Ø | 10TX40-1/Ø |
| T05 | 55 | 35 | 55 | 15 | 10TX50-2/Ø | 10TX50-1/Ø |
| T06 | 85 | 15 | 45 | 35 | 10TX50-2/Ø | 10TX50-2/Ø |
| T07 | 105 | 35 | 85 | 35 | 10TX100-2/Ø | 10TX80-2/Ø |
| T08 | 85 | 15 | 45 | 35 | 10TX80-1/Ø | 10TX40-2/Ø |
| T09 | 85 | 15 | 85 | 15 | 10TX80-1/Ø | 10TX80-1/Ø |
| T10 | 65 | 15 | 55 | 15 | 10TX60-1/Ø | 10TX50-1/Ø |
| T11 | 55 | 15 | 35 | 15 | 10TX50-1/Ø | 10TX30-1/Ø |
| T12 | 125 | 15 | 45 | 15 | 10TX120-1/Ø | 10TX40-1/Ø |
| T13 | 105 | 15 | 55 | 35 | 10TX100-1/Ø | 10TX50-2/Ø |
| T14 | 85 | 15 | 55 | 15 | 10TX80-1/Ø | 10TX50-1/Ø |
| T15 | 105 | 15 | 55 | 15 | 10TX100-1/Ø | 10TX50-1/Ø |
| T16 | 105 | 15 | 105 | 15 | 10TX100-1/Ø | 10TX100-1/Ø |
| T17 | 85 | 45 | 85 | 35 | 10TX80-3/Ø | 10TX80-2/Ø |
| T18 | 55 | 35 | 105 | 15 | 10TX50-2/Ø | 10TX100-1/Ø |
| T19 | 85 | 15 | 55 | 35 | 10TX80-1/Ø | 10TX50-2/Ø |
| T20 | 55 | 35 | 105 | 35 | 10TX50-2/Ø | 10TX100-2/Ø |
| T21 | 105 | 35 | 105 | 35 | 10TX100-2/Ø | 10TX100-2/Ø |
| T22 | 105 | 35 | 55 | 35 | 10TX100-2/Ø | 10TX50-2/Ø |
| T23 | 45 | 35 | 55 | 15 | 10TX40-2/Ø | 10TX50-1/Ø |
| T24 | 45 | 35 | 85 | 15 | 10TX40-2/Ø | 10X80-1/Ø |
| T25 | 85 | 15 | 45 | 15 | 10TX80-1/Ø | 10TX40-1/Ø |
| T26 | 65 | 15 | 105 | 15 | 10TX60-2/Ø | 10X100-2/Ø |
| T27 | 105 | 15 | 65 | 15 | 10TX100-2/Ø | 10TX60-2/Ø |
| T28 | 85 | 35 | 55 | 15 | 10TX80-2/Ø | 10TX50-1/Ø |
| T29 | 125 | 55 | 125 | 55 | 10TX120-3/Ø | 10TX120-3/Ø |
| T30 | 125 | 55 | 85 | 55 | 10TX120-3/Ø | 10TX80-3/Ø |
| T31 | 105 | 35 | 55 | 15 | 10TX100-2/Ø | 10TX50-1/Ø |
| T32 | 85 | 35 | 85 | 35 | 10TX80-2/Ø | 10TX80-2/Ø |
| T33 | 85 | 35 | 85 | 15 | 10TX80-2/Ø | 10TX80-1/Ø |
| T34 | 125 | 35 | 105 | 65 | 10TX120-2/Ø | 10TX100-4/Ø |
| T35 | 55 | 15 | 55 | 35 | 10TX50-1/Ø | 10TX50-2/Ø |
| T36 | 65 | 15 | 35 | 15 | 10TX60-1/Ø | 10TX30-1/Ø |
| T37 | 65 | 35 | 65 | 35 | 10TX60-2/Ø | 10TX60-2/Ø |
| T38 | 55 | 35 | 85 | 35 | 10TX50-1/Ø | 10TX80-1/Ø |
| T39 | 105 | 15 | 65 | 15 | 10TX100-1/Ø | 10TX60-1/Ø |
| T40 | 85 | 55 | 85 | 55 | 10TX80-3Ø | 10TX80-3/Ø |
| T41 | 125 | 55 | 85 | 75 | 10TX120-3Ø | 10TX80-4/Ø |
| T42 | 125 | 20 | 85 | 15 | 15TX120-1Ø | 10TX80-1/Ø |
| T43 | 85 | 55 | 55 | 35 | 10TX80-3Ø | 10TX50-2/Ø |
| T44 | 85 | 55 | 125 | 35 | 10TX80-3Ø | 10TX120-2/Ø |
| T45 | 45 | 35 | 45 | 15 | 10TX40-2Ø | 10TX40-1/Ø |
| T46 | 105 | 35 | 65 | 55 | 10TX100-2Ø | 10TX60-3/Ø |
| T47 | 155 | 85 | 155 | 85 | 10TX150-4Ø | 10TX150-4Ø |

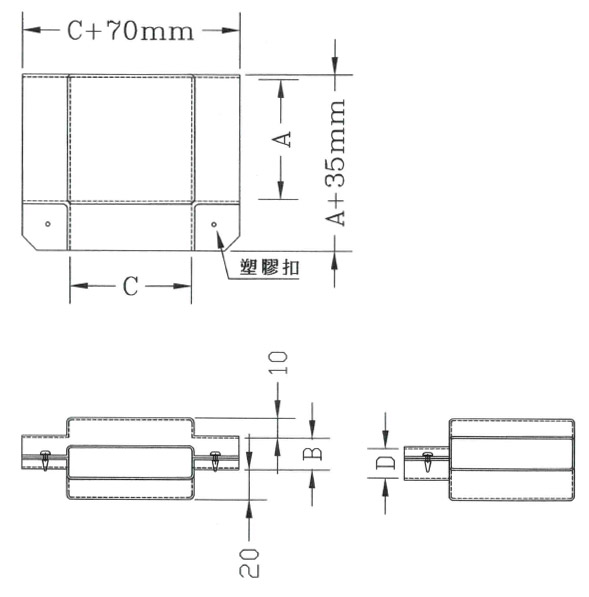

| 尺寸圖 (mm) | ||||||
 |
||||||
