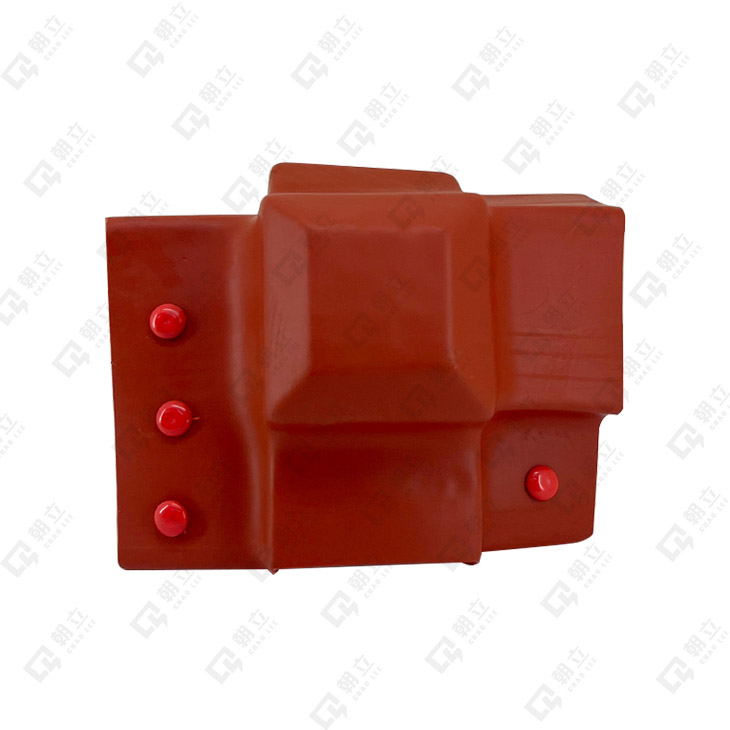

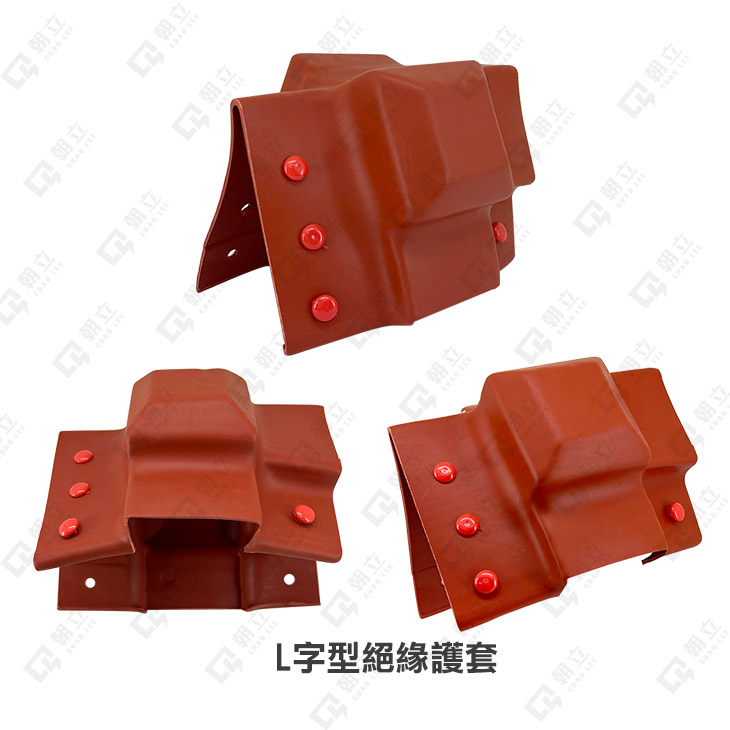

規格表
| 件號 | A + B + C + D | (A)主銅板規格 | (C)分路銅板規格 | |||
|---|---|---|---|---|---|---|
| L01 | 45 | 25 | 45 | 25 | 10TX40-1/Ø | 10TX40-1/Ø |
| L02 | 55 | 25 | 55 | 25 | 10TX50-1/Ø | 10TX50-1/Ø |
| L03 | 65 | 25 | 65 | 25 | 10TX60-1/Ø | 10TX60-1/Ø |
| L04 | 55 | 35 | 55 | 35 | 10TX50-2/Ø | 10TX50-1/Ø |
| L05 | 55 | 45 | 55 | 45 | 10TX50-2/Ø | 10TX50-2/Ø |
| L06 | 105 | 25 | 105 | 25 | 10TX100-1/Ø | 10TX100-1/Ø |
| L07 | 105 | 45 | 85 | 45 | 10TX100-2/Ø | 10TX80-2/Ø |
| L08 | 105 | 15 | 55 | 35 | 10TX100-1/Ø | 10TX50-2/Ø |
| L09 | 105 | 25 | 55 | 25 | 10TX100-1/Ø | 10TX50-1/Ø |
| L10 | 85 | 15 | 45 | 35 | 10TX80-1/Ø | 10TX40-2/Ø |
| L11 | 85 | 25 | 55 | 25 | 10TX80-1/Ø | 10TX50-1/Ø |
| L12 | 85 | 55 | 85 | 55 | 10TX80-3/Ø | 10TX80-2/Ø |
| L13 | 85 | 65 | 85 | 65 | 10TX80-3/Ø | 10TX80-3/Ø |
| L14 | 85 | 25 | 85 | 25 | 10TX80-1/Ø | 10TX80-1/Ø |
| L15 | 85 | 15 | 55 | 35 | 10TX80-1/Ø | 10TX50-2/Ø |
| L16 | 105 | 45 | 105 | 45 | 10TX100-2/Ø | 10TX100-2/Ø |
| L17 | 85 | 45 | 85 | 45 | 10TX80-2/Ø | 10TX80-2/Ø |
| L18 | 55 | 25 | 35 | 25 | 10TX50-1/Ø | 10TX30-1/Ø |
| L19 | 45 | 45 | 45 | 45 | 10TX40-2/Ø | 10TX40-2/Ø |
| L20 | 45 | 45 | 85 | 45 | 10TX40-2/Ø | 10TX80-2/Ø |
| L21 | 105 | 45 | 65 | 45 | 10TX100-2/Ø | 10TX60-2/Ø |
| L22 | 65 | 45 | 65 | 45 | 10TX60-2/Ø | 10TX60-2/Ø |
| L23 | 125 | 65 | 125 | 65 | 10TX130-3/Ø | 10TX120-3/Ø |
| L24 | 85 | 35 | 45 | 15 | 10TX80-2/Ø | 10X40-1/Ø |
| L25 | 125 | 45 | 125 | 45 | 10TX120-2/Ø | 10TX120-2/Ø |
| L26 | 125 | 45 | 85 | 45 | 10TX120-2/Ø | 10X80-2/Ø |
| L27 | 65 | 25 | 45 | 25 | 10TX60-1/Ø | 10TX40-1/Ø |
| L28 | 65 | 45 | 65 | 45 | 10TX60-2/Ø | 10TX60-2/Ø |
| L29 | 65 | 55 | 105 | 55 | 10TX60-3/Ø | 10TX120-2/Ø |
| L30 | 125 | 35 | 85 | 55 | 10TX120-2/Ø | 10TX80-3/Ø |
| L31 | 125 | 55 | 85 | 75 | 10TX120-3/Ø | 10TX80-4/Ø |
| L32 | 125 | 30 | 85 | 30 | 15TX120-1/Ø | 10TX80-1/Ø |
| L33 | 85 | 35 | 55 | 15 | 10TX80-2/Ø | 10TX50-1/Ø |
| L34 | 85 | 55 | 55 | 35 | 10TX80-3/Ø | 10TX50-2/Ø |
| L35 | 105 | 55 | 65 | 55 | 10TX100-2/Ø | 10TX60-3/Ø |
| L36 | 155 | 55 | 105 | 55 | 12TX150-2/Ø | 10TX100-2/Ø |
| L37 | 155 | 85 | 155 | 85 | 10TX150-4/Ø | 10TX150-4/Ø |

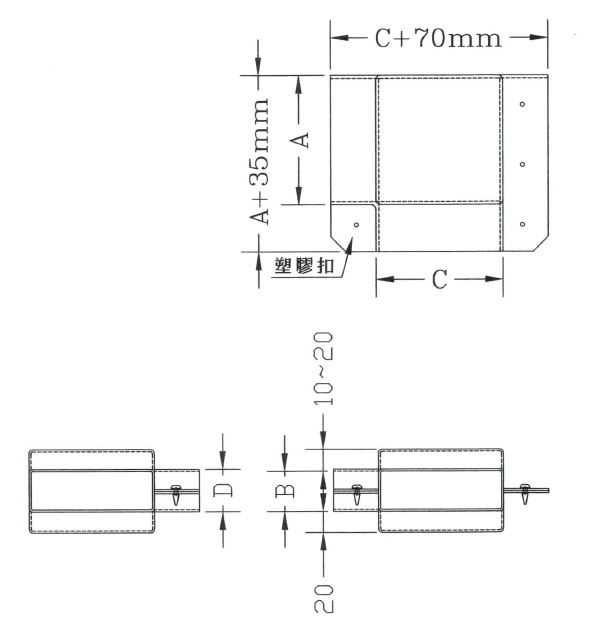

| 尺寸圖 (mm) | ||||||
 |
||||||
