LS牌電容器專用型電磁接觸器
LS牌電容器專用型電磁接觸器搭配連接電容器專用配件(抗流線圈)至電磁接觸器的端子，可以有效降低超過 20xIn 的突波電流。

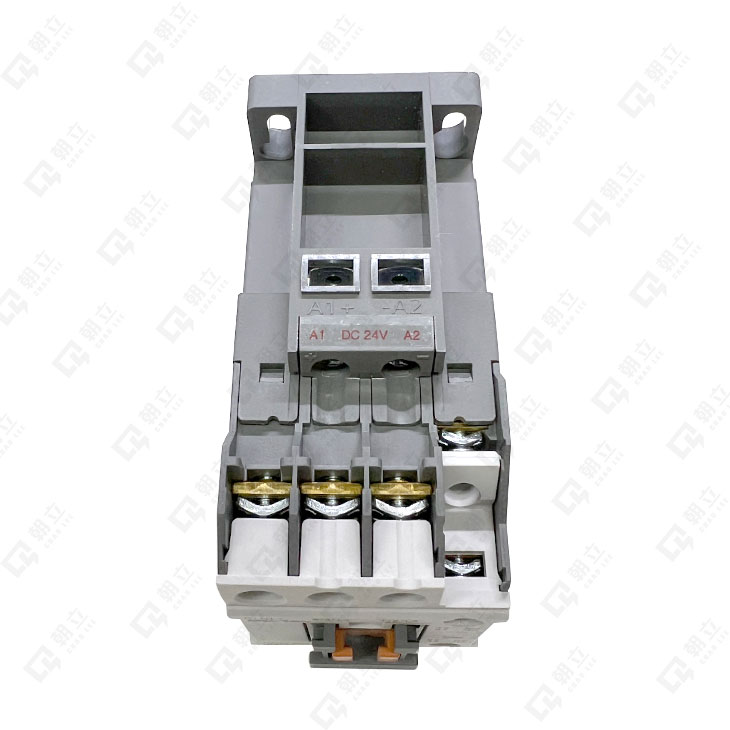

- 可選擇 AC 或 DC 控制線圈，其保護設計外殼可避免人員誤接觸。
- 三相常開(NO)主接點
- 特殊防夾傷設計
- 有DIN 軌道或螺絲固定方式可供選擇
- 符合 IEC60947-4-1 AC 6b 規範。（適用 50/60Hz 系統、啟斷電流能力超過 1.5xIn）
- 最新Metasol系列採低耗能、高效率設計，線圈最高溫度由85度降低到65度，耗能平均由9W降低到5W，為一綠色環保節能產品。

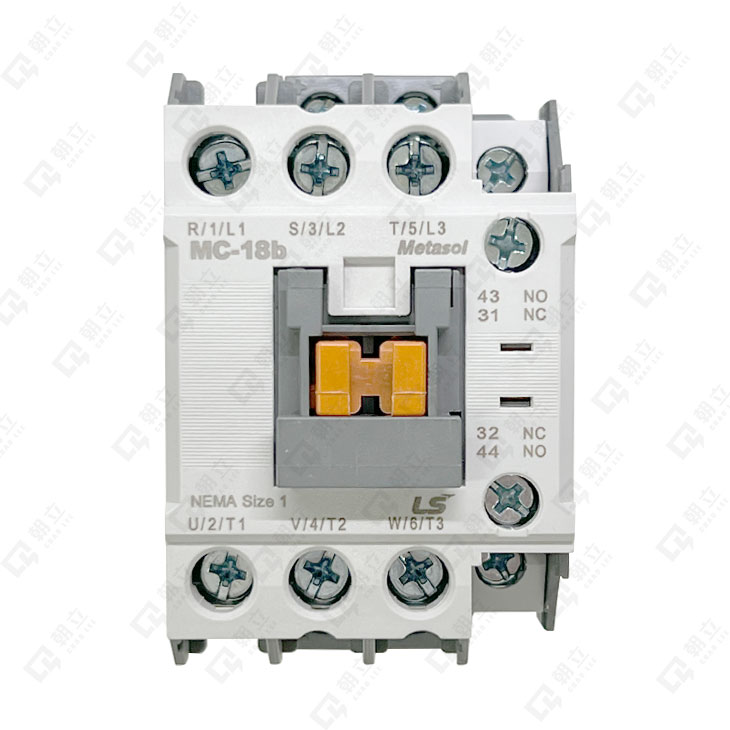

MC type Magnetic Contactors
| Frame size | 22AF | |||
|---|---|---|---|---|
| Type | MC-18b | |||
| screws clamp terminals | ● | |||
| Number of poles | 3pole | |||
| Rated operational voltage, Ue | 690V | |||
| Rated insulation voltage, Ui | 690V | |||
| Rated frequency | 50/60Hz | |||
| Rated impulse withstand voltage, Uimp | 6kV | |||
| Maximum operating rate in operating cycles per hour(AC3) | 1800 operations per hour | |||
| Durability | Mechanica | 15 mil. operations | ||
| Electrica | 2.5 mil. operations | |||
| Current and power |
AC-1 | Thermal current | A | 40 |
| AC-3 | 200/240V | kW A |
4.5 18 |
|
| 380/440V | kW AA |
7.5 18 |
||
| 500/550V | kW A |
7.5 13 |
||
| 690V | kW A |
7.5 9 |
||
| 1000V | kW A |
- - |
||
| Rated Short-time withstand current (IEC 60947) |
1s | A | 300 | |
| 10s | A | 154 | ||
| 30s | A | 100 | ||
| 1min | A | 80 | ||
| 3min | A | 60 | ||
| 10min | A | 40 | ||
| ≥15min | A | 40 | ||
| UL rating (50/60Hz) |
Continuous current | A | 40 | |
| Single phase |
110~120V 220~240V |
HP HP |
1 3 |
|
| Three phase |
200~208V 220~240V 440~480V 550~600V |
HP HP HP HP |
5 7.5 10 15 |
|
| NEMA | size | 1 | ||
| Size and weight  |
AC control |
Weight Size(W×H×D) |
kg mm |
0.34 45×73.5×87.4 |
| DC control |
Weight Size(W×H×D) |
kg mm |
0.41 45×73.5×103.6 |
|
| Auxiliary(standard) | 1NO1NC | |||
| Auxiliary | Side mount | UA-1 | ||
| Front mount | UA-2, UA-4 | |||
產品規範
| Type | Maximum Operation Power ( kvar / A ) | Max. Peak Current (A) |
Capacitor Unit Type | ||
|---|---|---|---|---|---|
| 220~240V | 400~440V | 500~550V | |||
| MC-9a/9b | 5 ／13 | 9.7／14 | 14／16 | 560 | AC-9 |
| MC-12a/12b | 6.7／18 | 12.5／18 | 18／21 | 560 | AC-9 |
| MC-18a/18b | 8.5／22 | 16.7／24 | 24／28 | 850 | AC-9 |
| MC-22b | 10／26 | 18／26 | 26／30 | 1250 | AC-9 |
| MC-32a | 15／39 | 25／36 | 36／42 | 1900 | AC-9 |
| MC-40a | 20／52 | 33.3／48 | 48／55 | 2160 | AC-9 |
| MC-50a | 20／52 | 40／58 | 58／ | 672160 | AC-50 |
| MC-65a | 25／66 | 45.7／66 | 66／76 | 3040 | AC-50 |
| MC-75a | 29.7／78 | 54／92 | 78／97 | 3040 | AC-75 |
| MC85a | 35／92 | 60／87 | 92／106 | 3040 | AC-75 |
| MC-100a | 37／90 | 62／106 | 94／109 | 3040 | AC-75 |
線圈電壓
| AC | 50Hz | 24, 32, 42, 48, 80, 100, 110, 220, 230, 240, 380, 400, 500, 550V |
|---|---|---|
| 60Hz | 24, 48, 100, 110, 120, 200, 208, 220, 230, 240, 277, 380, 480, 600V | |
| DC | DC | 12, 20, 24, 48, 60, 80, 100, 110, 125, 200, 220, 250V |
